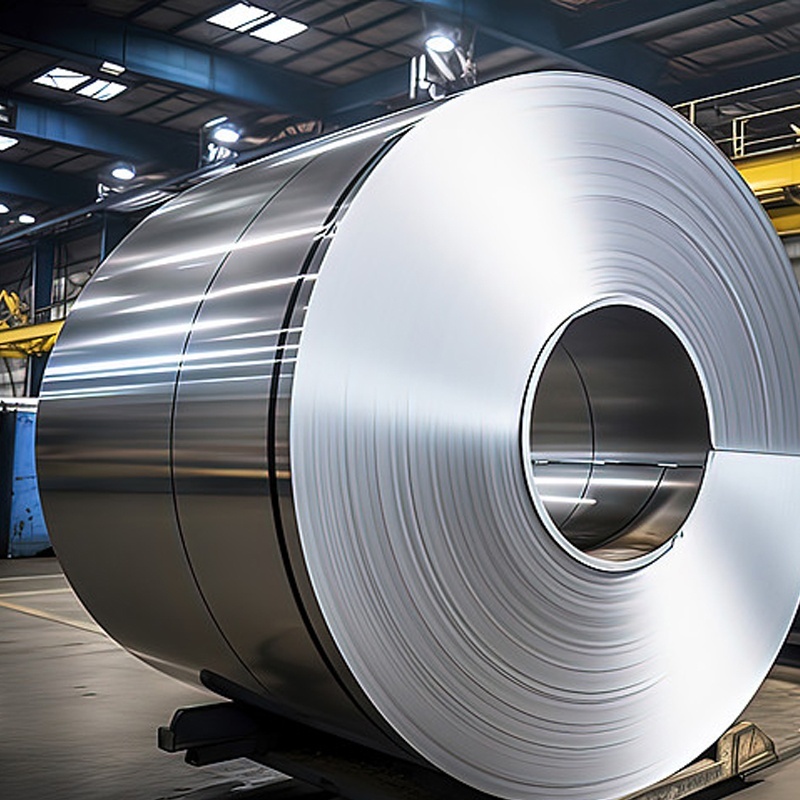

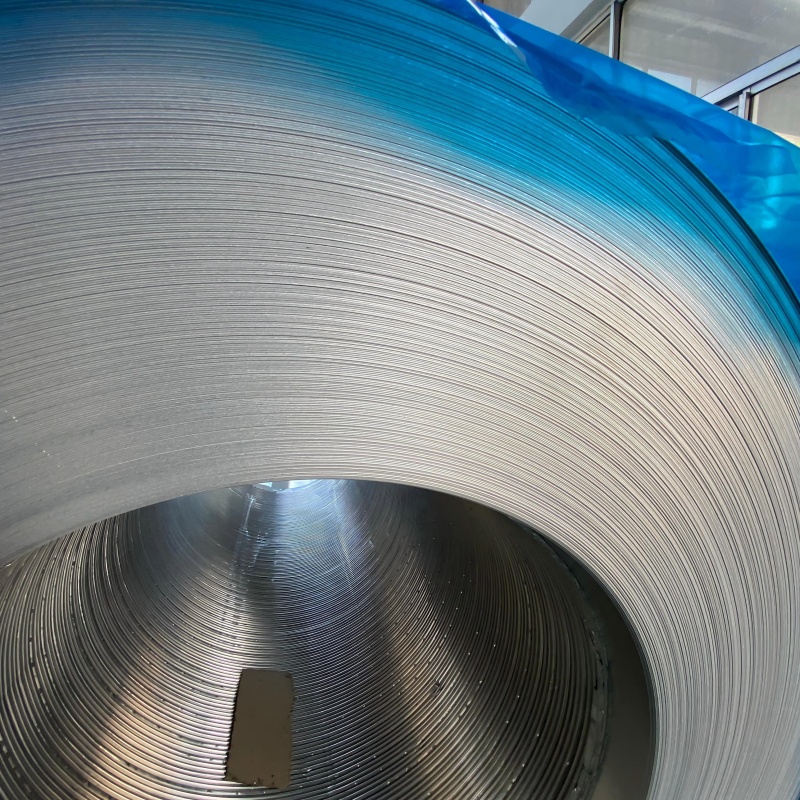

Hastelloy® B-2 Alloy Strips & Coils
| Alloy Name | Hastelloy B-2 Alloy |
| Standards | ASTM B333, ASME SB333, DIN EN 10095 |
| Coil & Strip Thickness: | 0.1mm – 3.0mm |
| Width: | 5mm – 600mm |
| Edge: | Slit edge, mill edge, deburred |
| Hardness: | Soft annealed, light hard, hard |
| Surface: | 2B, BA, bright annealed, polished, matte |
| Nickel (Ni) | 61.0% min |
| Molybdenum (Mo) | 26.0 – 30.0% |
| Iron (Fe) | ≤ 2.0% |
| Chromium (Cr) | ≤ 1.0% |
| Cobalt (Co) | ≤ 1.0% |
| Manganese (Mn) | ≤ 1.0% |
| Carbon (C) | ≤ 0.02% |
| Silicon (Si) | ≤ 0.1% |
| Phosphorus (P) | ≤ 0.04% |
| Sulfur (S) | ≤ 0.03% |
| Density | g/cm³ | 9.22 |
| Melting Range | lb/cu in | 0.333 |
| °C | 1345 – 1390 | |
| °F | 2450 – 2530 | |
| Modulus of Elasticity | GPa | 217 (20°C) |
| ksi | 31.5 x 10³ (70°F) | |
| Thermal Expansion (20–538°C) | µm/m·°C | 11.2 |
| Thermal Conductivity (100°C) | W/m·K | 10.5 |
| Temperature | Yield strength | Tensile strength | Elongation | |||
| Rp 0.2 | Rm | A | ||||
| °C | °F | MPa | ksi | MPa | ksi | % |
| 20 | 68 | ≥ 310 | ≥ 45 | ≥ 793 | ≥ 793 | ≥ 40 |
Applications of Hastelloy® B-2 Alloy Bars & Rods
Chemical Processing
Reaction vessels, gaskets, liners, bellows, and components for handling strong reducing acids.
Electronics & Semiconductor
Corrosion-resistant components for acid cleaning equipment and wet processing stations.
Precision Instrumentation
Thin-walled parts, diaphragms, seals and flexible connectors exposed to harsh acidic media.
Pharmaceutical & Fine Chemical
Flexible linings, heat exchanger foils, and equipment for high-purity chemical synthesis.
Metal Surface Treatment
Strip heaters, acid tank liners, and flexible components for pickling lines.
Oil & Gas
Sour service components, flexible connectors, and parts exposed to H₂S and chloride-rich environments.
Automotive & Special Engineering
Corrosion-resistant strips for exhaust treatment, high-temperature sensors and acidic fluid handling systems.
| Alloy Name | Hastelloy B-2 Alloy |
| Standards | ASTM B333, ASME SB333, DIN EN 10095 |
| Coil & Strip Thickness: | 0.1mm – 3.0mm |
| Width: | 5mm – 600mm |
| Edge: | Slit edge, mill edge, deburred |
| Hardness: | Soft annealed, light hard, hard |
| Surface: | 2B, BA, bright annealed, polished, matte |
| Nickel (Ni) | 61.0% min |
| Molybdenum (Mo) | 26.0 – 30.0% |
| Iron (Fe) | ≤ 2.0% |
| Chromium (Cr) | ≤ 1.0% |
| Cobalt (Co) | ≤ 1.0% |
| Manganese (Mn) | ≤ 1.0% |
| Carbon (C) | ≤ 0.02% |
| Silicon (Si) | ≤ 0.1% |
| Phosphorus (P) | ≤ 0.04% |
| Sulfur (S) | ≤ 0.03% |
| Density | g/cm³ | 9.22 |
| Melting Range | lb/cu in | 0.333 |
| °C | 1345 – 1390 | |
| °F | 2450 – 2530 | |
| Modulus of Elasticity | GPa | 217 (20°C) |
| ksi | 31.5 x 10³ (70°F) | |
| Thermal Expansion (20–538°C) | µm/m·°C | 11.2 |
| Thermal Conductivity (100°C) | W/m·K | 10.5 |
| Temperature | Yield strength | Tensile strength | Elongation | |||
| Rp 0.2 | Rm | A | ||||
| °C | °F | MPa | ksi | MPa | ksi | % |
| 20 | 68 | ≥ 310 | ≥ 45 | ≥ 793 | ≥ 793 | ≥ 40 |
